Product Summary

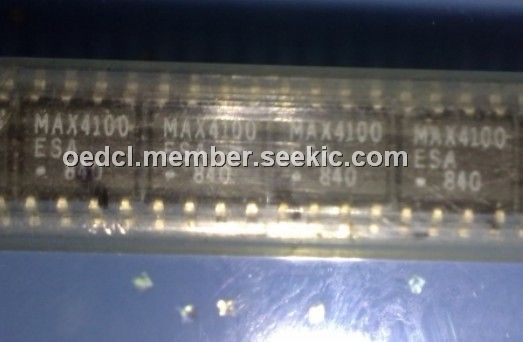

The MAX4100ESA is a 500MHz, low-power Op amp. The MAX4100ESA op amp combines ultra-highspeed performance with low-power operation. The MAX4100ESA is compensated for unity-gain stability, while the MAX4100ESA is compensated for stability in applications with a closed-loop gain (AVCL) of 2V/V or greater. The MAX4100ESA requires only 5mA of supply current while delivering a 500MHz unity-gain bandwidth or a 200MHz -3dB bandwidth with a 250V/μs slew rate.
Parametrics
MAX4100ESA absolute maximum ratings: (1)Power-Supply Voltage (VCC, VEE): ±6V; (2)Voltage on Any Pin to Ground or Any Other Pin: VCC to VEE; (3)Short-Circuit Duration (VOUT to GND): Indefinite; (4)Continuous Power Dissipation (TA = +70℃); (5)SO (derate 5.88mW/℃ above +70℃): 471mW; (6)μMAX (derate 4.10mW/℃ above +70℃): 330mW; (7)Operating Temperature Ranges: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX4100ESA features: (1)500MHz Unity-Gain Bandwidth; (2)200MHz -3dB Bandwidth; (3)65MHz 0.1dB Gain Flatness; (4)250V/μs Slew Rate; (5)0.06%/0.04° Differential Gain/Phase; (6)High Output Drive: 80mA; (7)Low Power: 5mA Supply Current; (8)Fast Settling Time: 18ns to 0.1%35ns to 0.01%.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4100ESA |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||
|
MAX4100ESA+ |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||
|
MAX4100ESA+T |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||
|
MAX4100ESA-T |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||
